Real-time trace view.
scrttv visualizes real-time waveform data (see scrttv overview) of a defined window length (default=30 minutes) and of defined streams/stations (default is primary station channels). scrttv switches between two modi. In the normal mode the trace order is given by the configuration file. In the event mode the traces are sorted by epicentral distance to the latest origin received from the messaging. Additional to the waveform traces information about gaps, picks and the time of incoming origins are displayed.

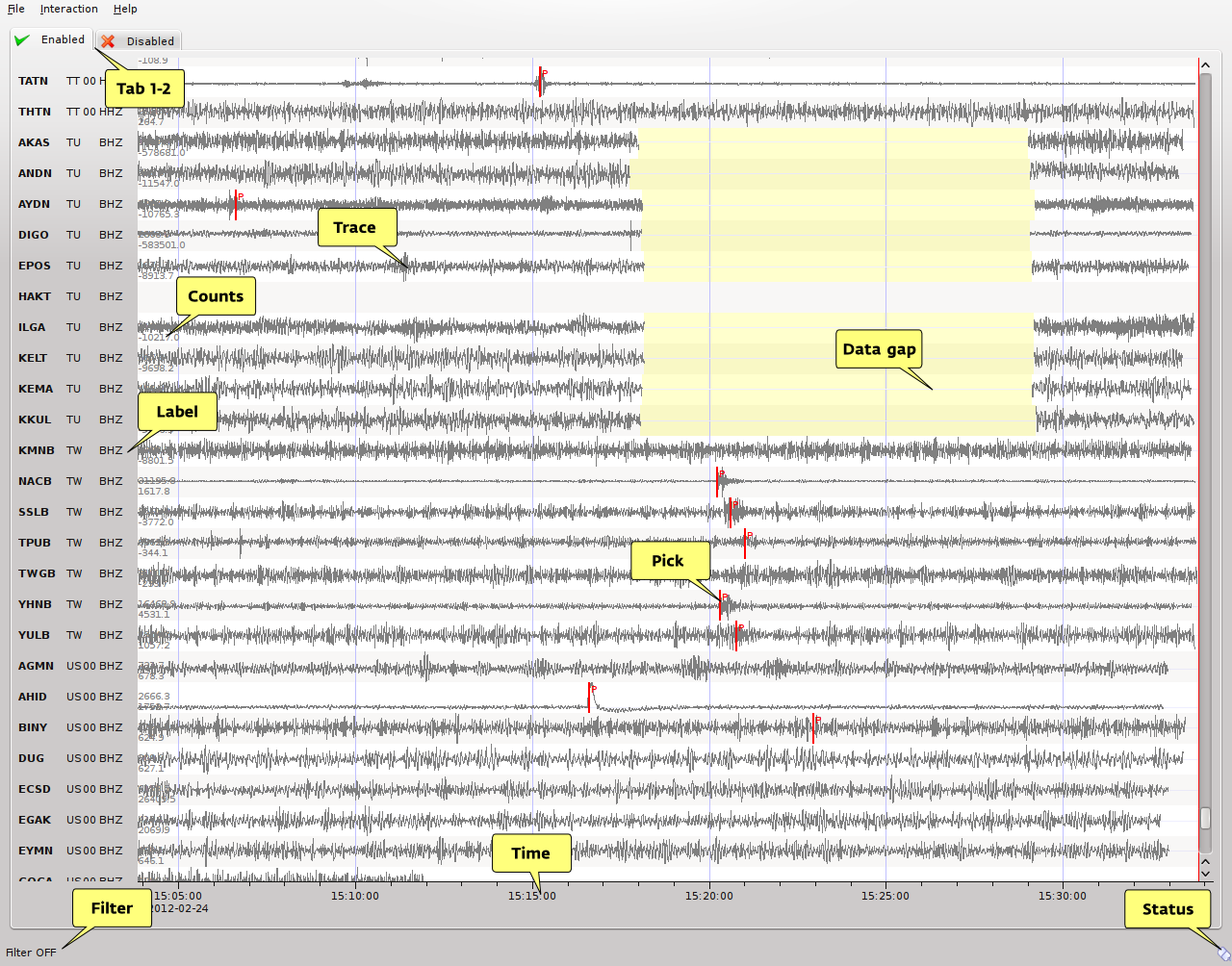

scrttv overview
scrttv shows two tabs: the enabled and the disabled tab (see scrttv overview: Tab 1-2). Stations listed in the disabled tab are excluded from processing (e.g. picking). To move a station from one tab to another just drag and drop the trace to the new tab. An alternative solution is to double click on the trace label to disable a trace.
Normally, the raw data are displayed. Pressing f the predefined bandpass filter of third order from 0.5 Hz to 10 Hz, BW(3,0.5,10) is applied to the traces. Also zoom functions for the time and amplitude axis are provided.
artifical origin

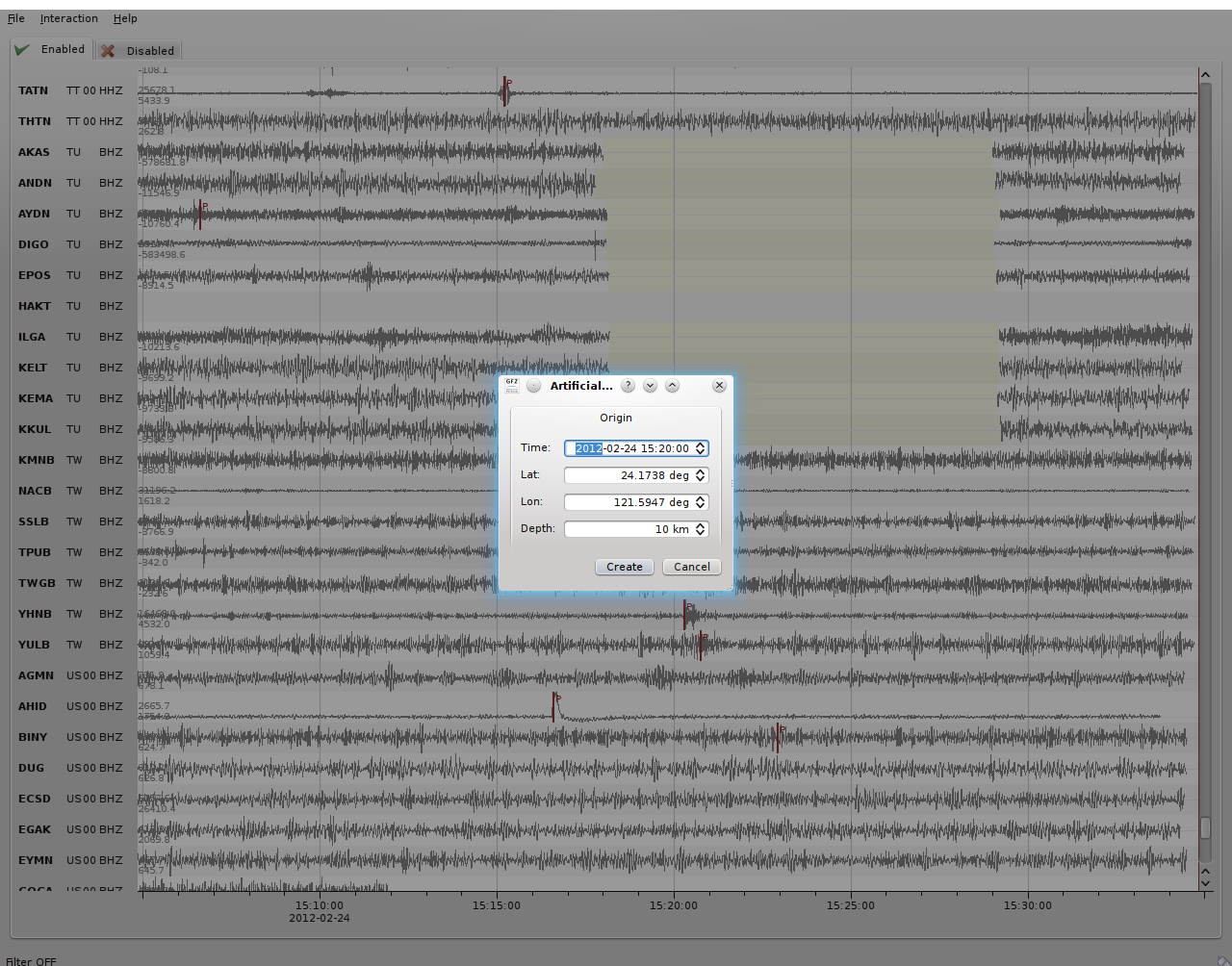

In case the operator recognizes several seismic signals, an artificial/preliminary origin can be set by either pressing the middle mouse button on a trace or by opening the context menu (right mouse button) on a trace and selecting "Create artificial origin". The following pop-up window show the coordinates of the trace and the time the click was made on the trace. Pressing "Send" sends this origin to the LOCATION group. This artificial origin is received e.g. by scolv and enables an immediate manual analysis of the closest traces.
| Hotkey | Description |
|---|---|
| F2 | Setup connection dialog |
| F11 | Toggle fullscreen |
| f | Toggle filter |
| r | Toggle all records |
| z | Toggle zoom |
| up | Line up |
| down | Line down |
| PgUp | Page up |
| PgDn | Page down |
| Alt+PgUp | To top |
| Alt+PgDn | To bottom |
| left | Scroll left |
| right | Scroll right |
| Ctrl+left | Align left |
| Ctrl+right | Align right |
| Alt+q | Quit |
| 1 | Restore configuration order of traces |
| 2 | Sort traces by distance |
| 3 | Sort traces by station code |
| 4 | Sort traces by network-station code |
| < | Horizontal zoom-in |
| > | Horizontal zoom-out |
| y | Vertical zoom-out |
| Shift+y | Vertical zoom-in |
| n | Set default display |
scrttv inherits global options.
Type: int
If greater than 0 then all traces for which the data latency is higher than this value are hidden. Default is 0.
Type: boolean
If enabled then all traces are sorted by distance when a new origin arrives. Default is true.
Type: boolean
If enabled, picks are shown. Default is true.
Type: string
Defines the filter to be used when filtering is activated. Default is BW(3, 0.5, 10.0).
Type: int
Defines the buffer size in seconds of the ring bu of each trace. Default is 1800.
Type: int
Time span in seconds to switch back to the last view after an origin caused resorting. The default is 15min. Default is 900.
Type: list:string
Defines a list of channels codes to be displayed. Each list item can contain wildcards at any position and the given list is intersected with all channels configured in inventory.
Note
streams.sort.* Configures an initial location (latitude, longitude) to be used for sorting the traces.
Type: double
Latitude of the initial location.
Type: double
Longitude of the initial location.
Note
streams.region.* Defines a region used for clipping requested stations.
Type: double
Type: double
Type: double
Type: double
